Cabinet Hinge

A concealed cup hinge connects the inside of a cabinet door to the cabinet side so the door can open and close.

Images may include supplier records, similar-product references or scene illustrations. Confirm appearance, installation and specifications against a sample.

In context

Seen in use.

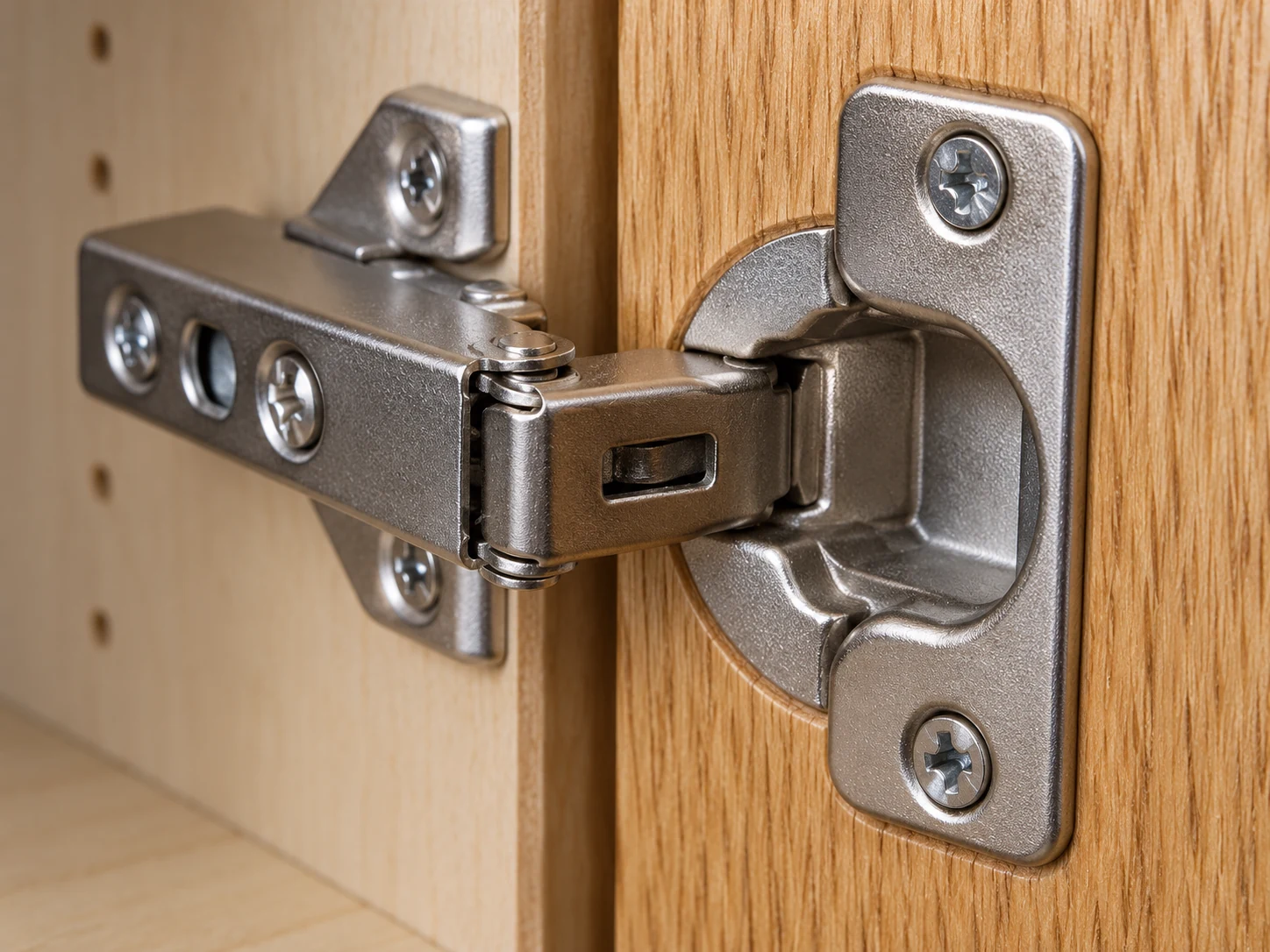

Cabinet Hinge · Cup hinge on a half-open cabinet door — Cup hinge on a half-open cabinet door

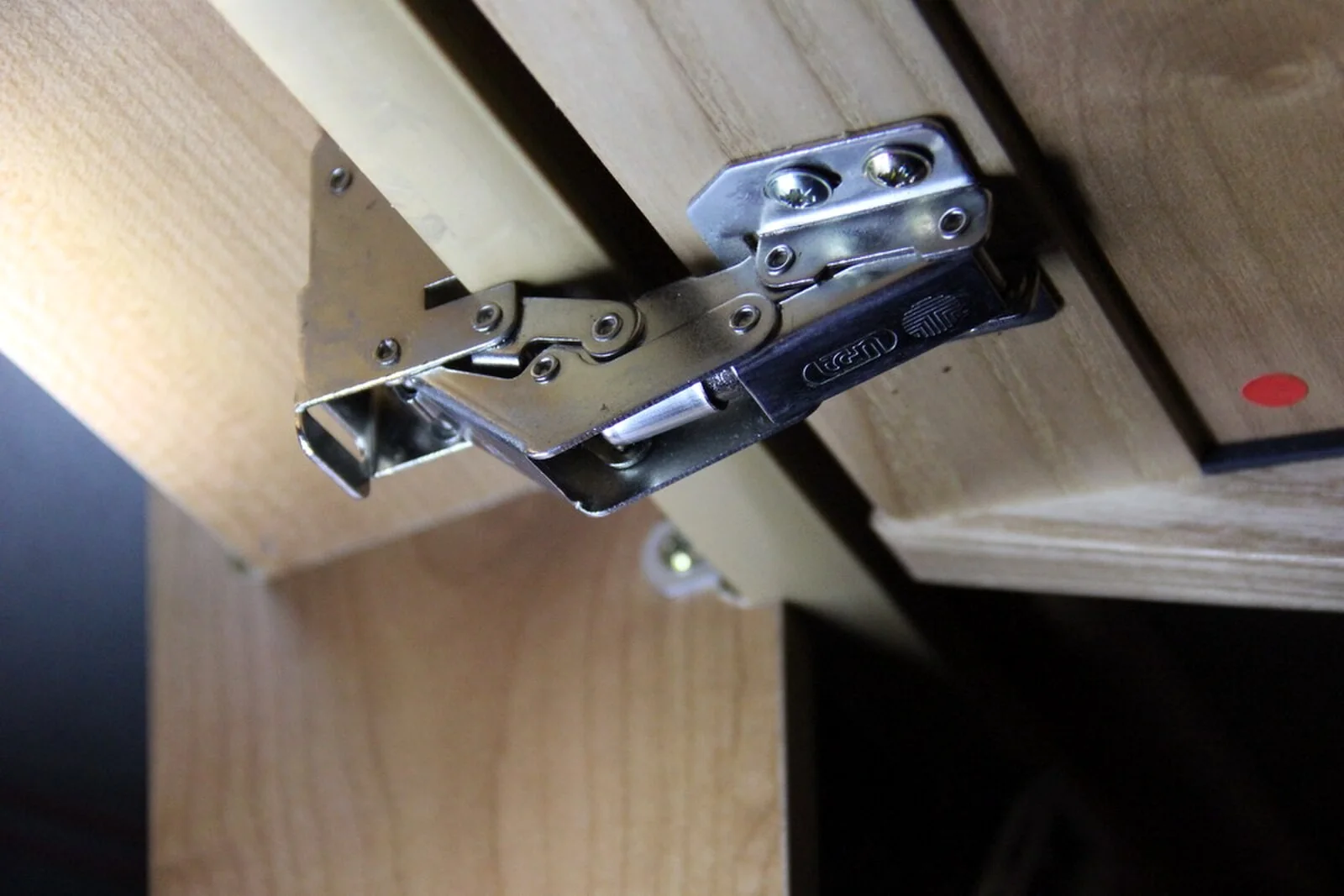

Cabinet Hinge · Inside connection as the door moves — Inside connection as the door moves

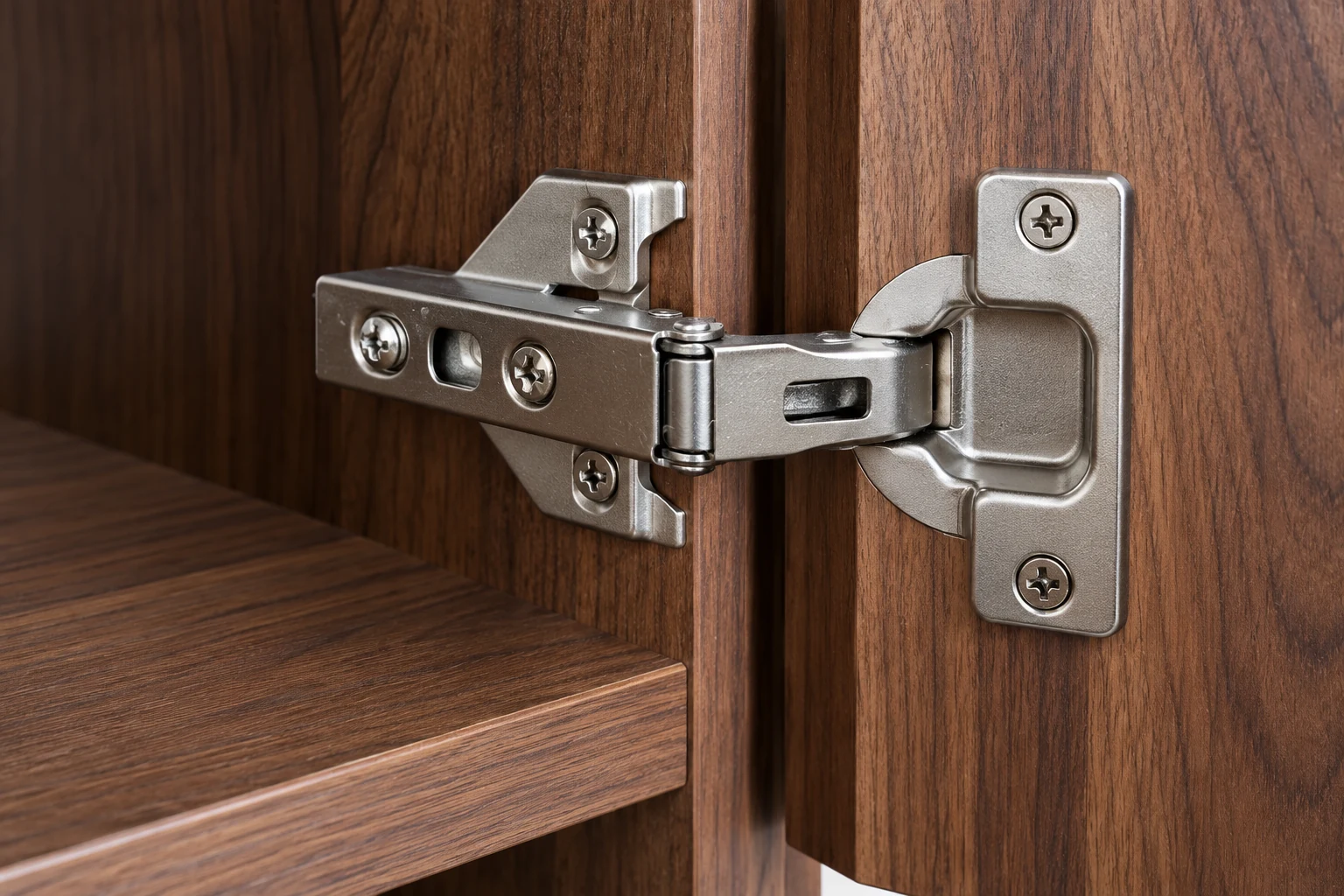

Cabinet Hinge · Articulated arm inside a dark-wood cabinet — Articulated arm inside a dark-wood cabinet

Specifications

What to confirm.

The cup is normally recessed into a prepared hole on the inside of the door, while the mounting plate fixes to the cabinet side. Confirm panel thickness, cup drilling and plate position; damping is unverified.

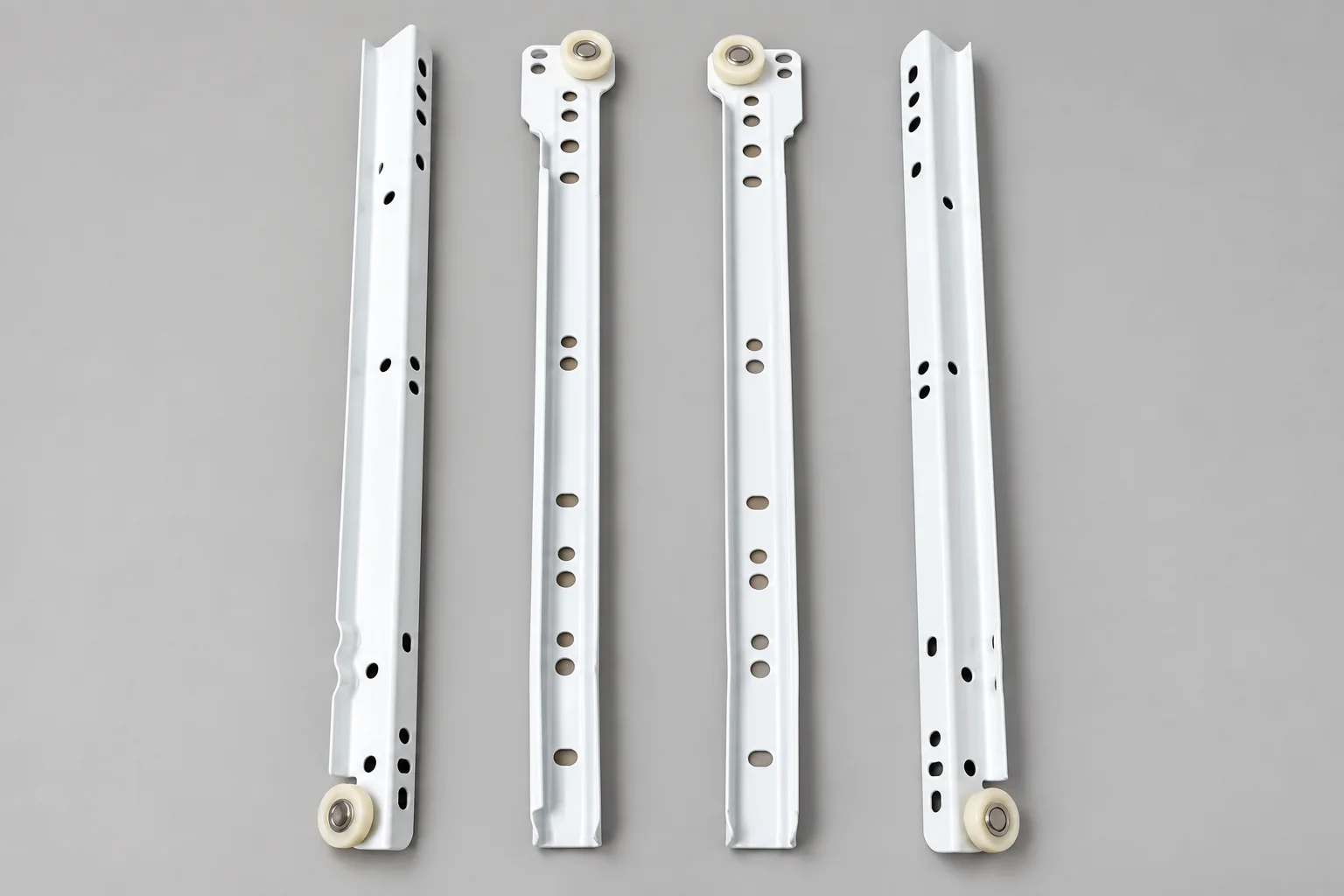

Drawer SlidesGuides a drawer in and out of a cabinet.

MirrorPackaging photo only; mirror model unconfirmed.

ScrewsThreaded fastening for panels and hardware.
